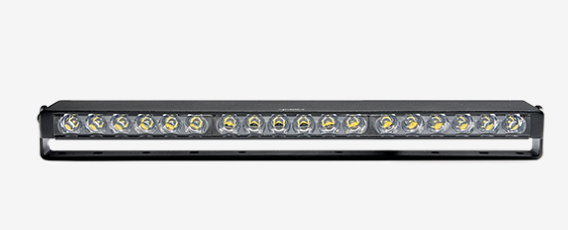

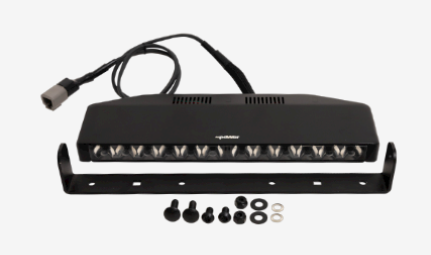

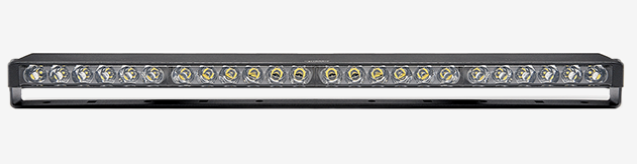

Soundoff Signal mPower® ORV Lightbar

• Designed with a hybrid spot/flood beam pattern for optimal illumination that doesn't take away from existing warning lighting

• Spot beam: a concentrated, intense beam of focused bright light to penetrate the darkest of nights at long distances for maximum forward visibility

• Flood optic: a wide pattern of light that floods an area within close proximity as well as greater side visibility

• Features durable silicone lens technology to meet challenging needs of harsh environments and weather conditions, maintaining a long-lasting performance

• By combining the optics, housing and weather seal into one single part, these lights provide improved reliability over traditional options

• Low-profile design allows for mounting nearly anywhere on any type of vehicle, providing added versatility

Amperage Draw @ 14V

• 12" - 7.5 amps

• 18" -  11.25 amps

• 24" - 15 amps

Input Voltage Range

• 9-32 Vdc

Dimensions

• 12"  - 13.3" (33.7cm) L 1.125" (2.8cm) H 4.5" (11.4cm) D

• 18" - 19.9" (50.5cm) L 1.125" (2.8cm) H 4.5" (11.4cm) D

• 24" - 26.6” (67.5cm) L 1.125” (2.8cm) H 4.5” (11.4cm) D

IP Rating

• IP67

LUX @ 10m

• 12" - 1,190 lx

• 18" - 1,784 lx

• 24 - 2,282 lx

Raw Lumens

• 12" - 8,292 lm

• 18" - 12,438 lm

• 24 - 16,548 lm

Beam Distance @ .25 LUX

• 12" - 690m

• 18" - 845m

• 24" - 955m

Beam Distance @ 1 LUX

• 12" - 345m

• 18" - 422m

• 24" - 478m

LED Colors Available

• White

LED Options & Count

• 12" - Single Color 12 LED

• 18" - Single Color 18 LED

• 24 - Single Color 24 LED

Lens Options

• Silicone clear lens

Candela

• 12" - 119,000

• 18" - 178,400

• 24" 228,200

Operating Tempurature

• -40°F to +149°F

Warranty

1. Limited Lifetime Warranty
